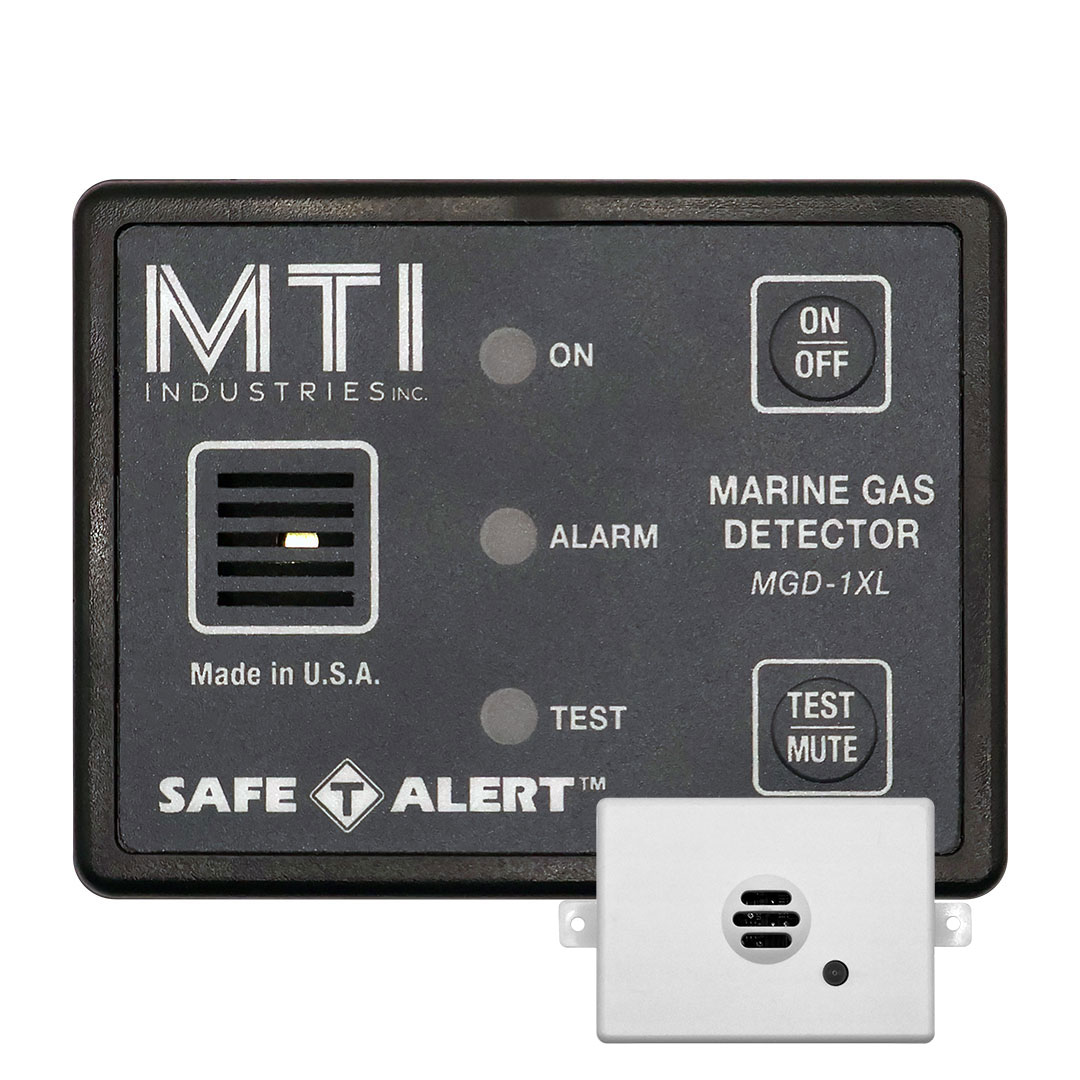

Surface Mount Gas Fume Detector MGD-1XL
$129.95
Need Replacement Components or Additional Coverage?
$50.00
This does not come with any external sensors or cables; it is a replacement panel only.
$75.00
This comes with 1 panel, 1 20ft cable, and a Y connector, intended to hook up to an already installed alarm for additional awareness.
$100.00

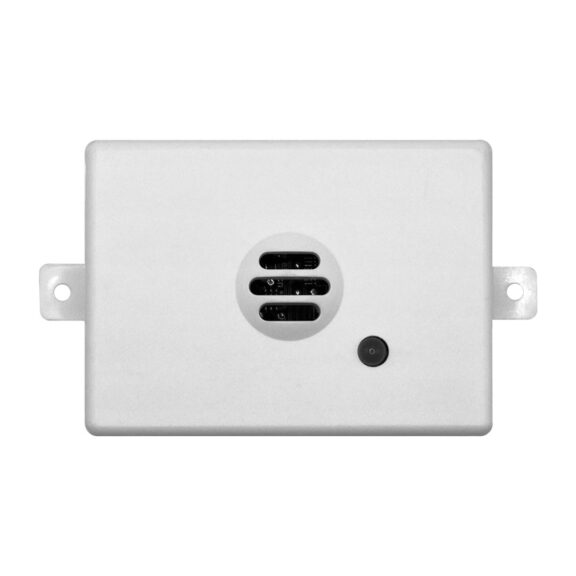

This comes with an additional sensor block that is programmed to beep at a different cadence, 20 ft cable & Y connector.
Features
- Provides protection against accidents caused by Gas/Propane spills or leaks. Remote sensor monitors bilge/engine compartment during and after fueling. Install sensor in galley or LP tank locker to protect against propane leaks.
- Sight and Sound Alarm Indicator. Dual signaling sounds an alarm and activates warning light.
- Marine Proven. Exclusively designed for the harsh marine environment.
- Smart Sensor. Detects the build up of explosive gases.
- On/Off/Test. For one touch analysis of detector performance.
- Money Saving. Qualify for marine insurance discounts.
Operating Specifications
- Power 12 vDC, operational range +/- 15%
- 200 milliamp (.2 amp.) current draw
- Alarm Trigger: 20% or less of the lower explosive limit of gasoline, propane and CNG
- Fumes Detected: Gasoline, hydrogen from batteries, propane, alcohol, acetone, CNG and other explosive vapors
- Dimensions: 3.5″W x 2.75″H x 0.75″D
